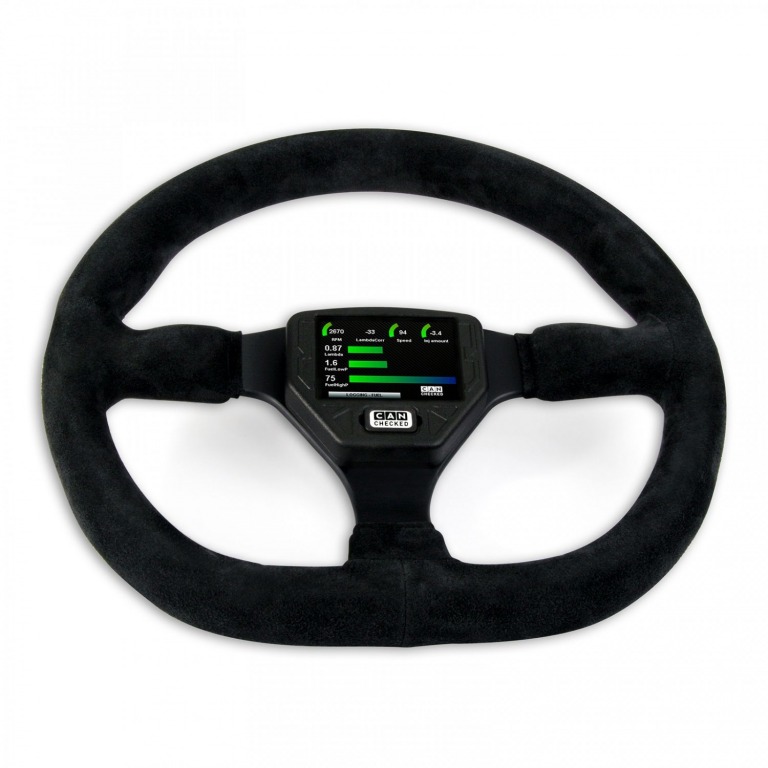

CANchecked SWD32 Gen2 – Flat Steering Wheels

Key Features Steering Wheels

• Compact size: The external dimensions are 89.5 x 60.5 mm and the depth is 19.5 mm (without connector)
• Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
• Gear display: Directly via Can Bus or calculated from speed and rpm
• Touchscreen: Navigate through pages using intuitive swipe gestures
• Customization: Design your own pages, add your own pictures or start animation
• Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
• Can Switching: Use your display as a keypad and send your own can messages to the bus
• Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
• Logging: Log and save your data to the internal SD card for later analysis.
• Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.Steering Wheels
• DTC*: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
• Dimming*: Your display automatically dims along with the instrument panel

Different views of Steering Wheels

onfigure your own page or choose from several predefined views:

• The display is delivered with predefined sample pages
• Creation of own pages possible and wished
• Up to ten pages possible
• 20 different widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Widgets can be scaled in size and positioned using drag and drop
• Colours of the widgets fully adjustable
• Up to 64 widgets per page
